Prezzi ridotti! Dap Audio - GIG-124CFX Visualizza ingrandito

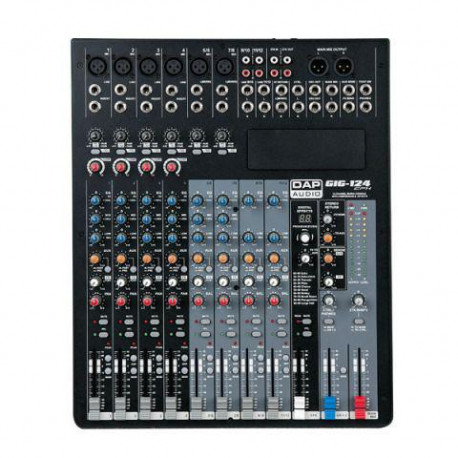

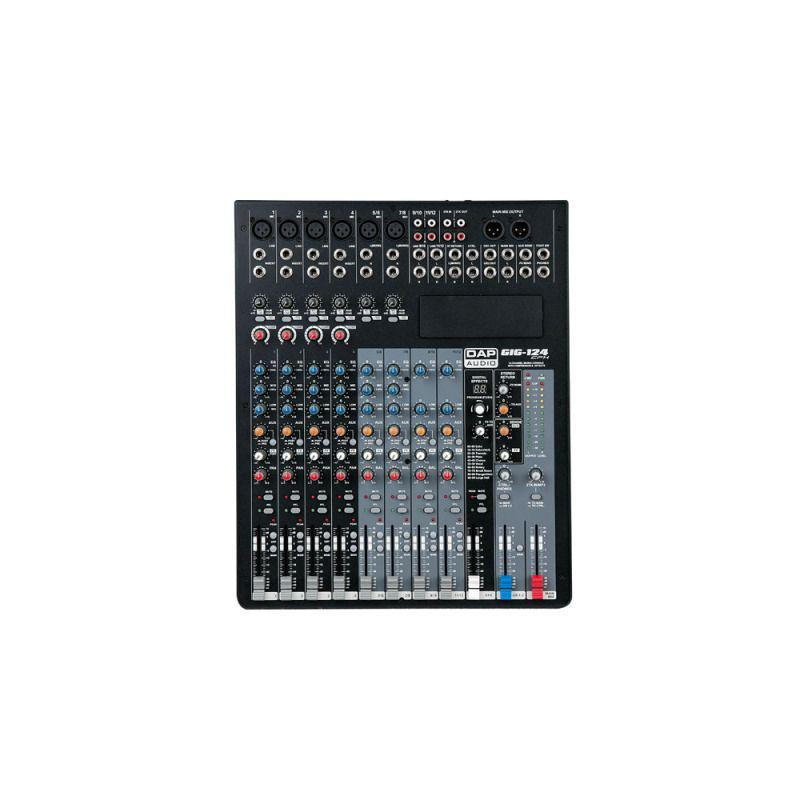

Dap Audio - GIG-124CFX

GIG-124CFX

12 Channel live mixer incl. dynamics & DSP

409.00€%4.89 Risparmi 20.00€
389,00 € tasse incl.

Ricevilo tra %MINIMAL_DATE% e %MAXIMAL_DATE% a seconda della spedizione scelta. Ci sono %NB_TOTAL_CARRIERS% opzioni di spedizione. +info

Add to wishlist

Spedizione gratuita disponibile per questo prodotto!

Disponibile

Magazzino in Europa: 69
 Magazzino in Spagna: 1

Dettagli

Specifications:

Mono Channels

  • Mic Input: XLR balanced
  • Line input: 1/4– TRS balanced
  • Freq response: 10Hz ~ 55kHz, +/- 3dB
  • Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
  • Gain range: 50dB
  • Input sensitivity: -35dBu ~ +15dBu
  • LOW Cut: 75Hz
  • SNR <-100dBr
  • Phantom Power: +48V switchable


Stereo Channels

  • Mic Input: XLR balanced
  • Line input: 1/4– TRS/RCA unbalanced
  • Freq response: 10Hz ~ 55kHz, +/- 3dB
  • Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
  • Gain range: 50dB
  • Input sensitivity: -20dBu ~ +20dBu
  • LOW Cut: 75Hz
  • SNR <-100dBr
  • Phantom Power: +48V switchable


Channels EQ

  • High: +/- 15dB @ 12kHz
  • Mid: +/- 15dB @ 2,5kHz
  • Low: +/- 15dB @ 80Hz

Impedances

  • Microphone input: 1,8K Ohm
  • Other inputs: >10K Ohm
  • Tape output: 1K Ohm
  • All other outputs: 120 Ohm

Power supply: AC 100- 240V 50Hz/60Hz

  • Power consumption: 40 Watt
  • Measurements: 416 x 340 x 93mm
  • Weight: 3,96 Kg

Recensioni

Non ci sono commenti dei clienti al momento.

Scrivi una recensione

Dap Audio - GIG-124CFX

Dap Audio - GIG-124CFX

12 Channel live mixer incl. dynamics & DSP
