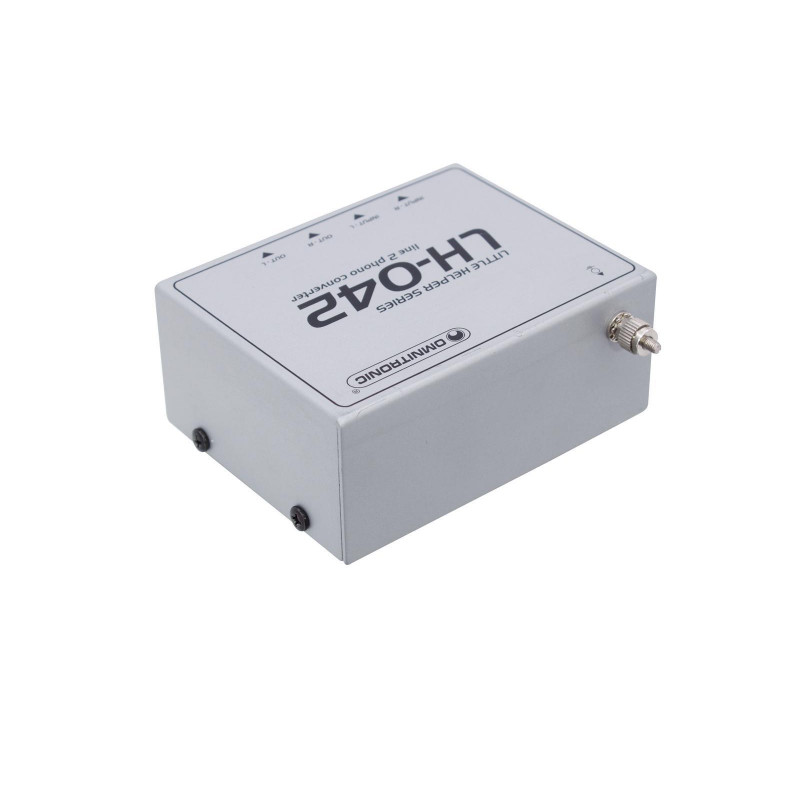

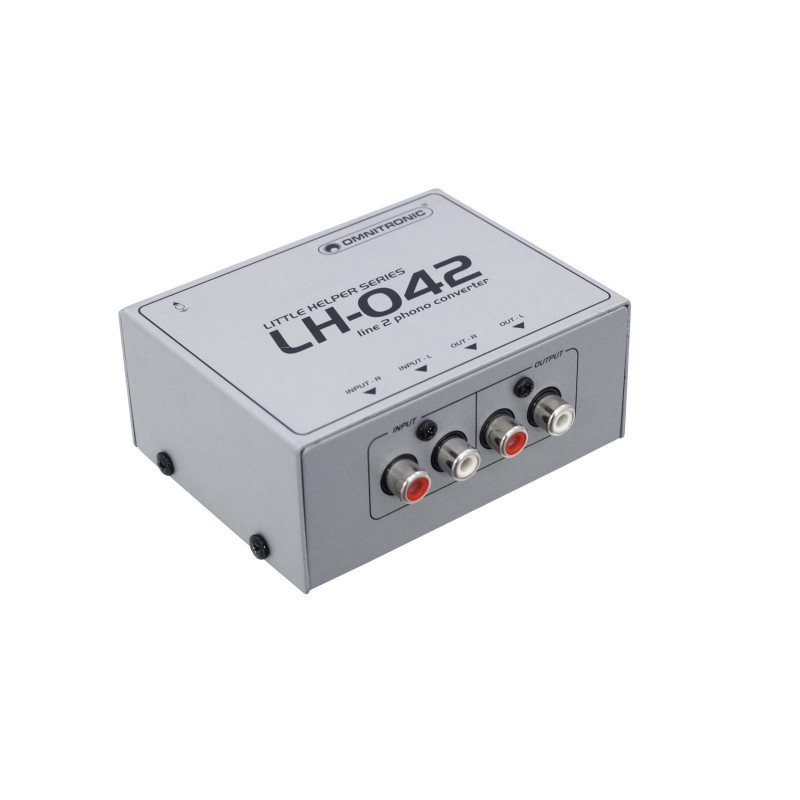

The LH-042 converts a line signal to a phono signal. What this is good for? Just imagine the following situation. Your working as a DJ and you have recently bought a new line source (a CD player, MP3 player or the like). Now you would like to connect it to your mixer, but the line inputs are already used. What to do? At this point it's time for our LH-042. Just plug it into a phono input and connect your additional line source to the converter: you've got one more line slot for your mixer.

Passive stereo line/phono converter

• Converts a line signal to a phono signal
• Connect your line level sources, such as CD, MP3, DVD, or PC, to the magnetic phono input of a mixer, amplifier or recording unit
• Ground terminal for avoiding hum
• No power supply via power unit or battery necessary

Frequency range:	10 - 20000 Hz
S/N ratio:	>100 dB
Color:	Silver
Audio output:	1 x Stereo RCA
Material:	Metal
Width:	9,8 cm
Height:	4 cm
Depth:	9,2 cm
Weight:	0,22 kg
Nominal input level:	500 mV
Nominal output level:	2.5 mV
Input impedance:	>10 kohms
Output impedance:	470 ohms
Level attenuation:	-46 dB/ 1 kHz
Frequency characteristic:	passive inverse RIAA
Phono input compatibility:	moving magnet (MM), moving coil (MC)
