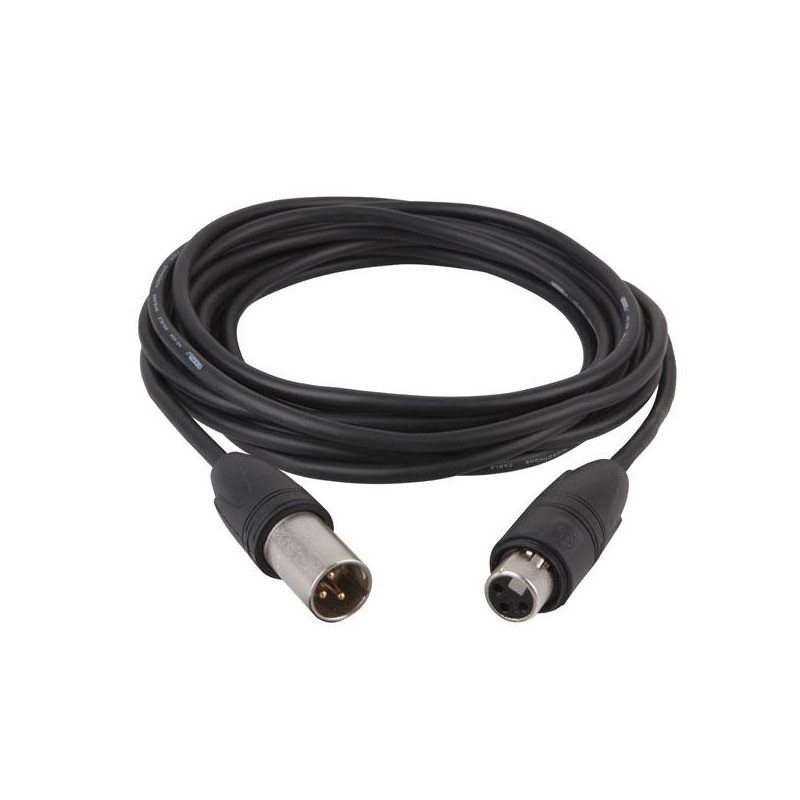

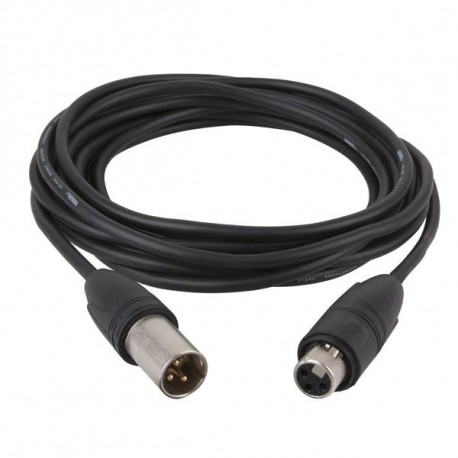

Dap Audio - FL82 - IP65 DMX/AES-EBU XLR/M 3p. - XLR/F 3p. Neutrik
FL82 - IP65 DMX/AES-EBU XLR/M 3p
20 m XX HD
More info
Connectors: Neutrik NC3MXX-HD & NC3FXX-HD (IP 65)
Specifications Cable
Conductor drains Ø mm: OFC 18 x 0,10
Conductor insulation: FPE red+white
Conductor insulation: 1,9 (Ø in mm)
Filler material: paper + cotton yarn
1st shield: OFC braided 128 x 0,12
2nd shield: -
Outer isolation: PVC black
Outer isolation Ø: 6 mm
Conductor resistance: 130 Ohm/Km
Shield resistance: 12,5 Ohm/Km
Capacity Inner conductor: 35 pF/m
Cap. Inner conduct. Shield / Inner conduct.: 52 pF/m
Working temperature min. / max.: -20~60 °C
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm
