Citronic - 173.650UK
USB2+1 USB Audio Interface - 2...
-
Artecta - Power Supply...
MEAN WELL RSP-100-12
View larger
More info

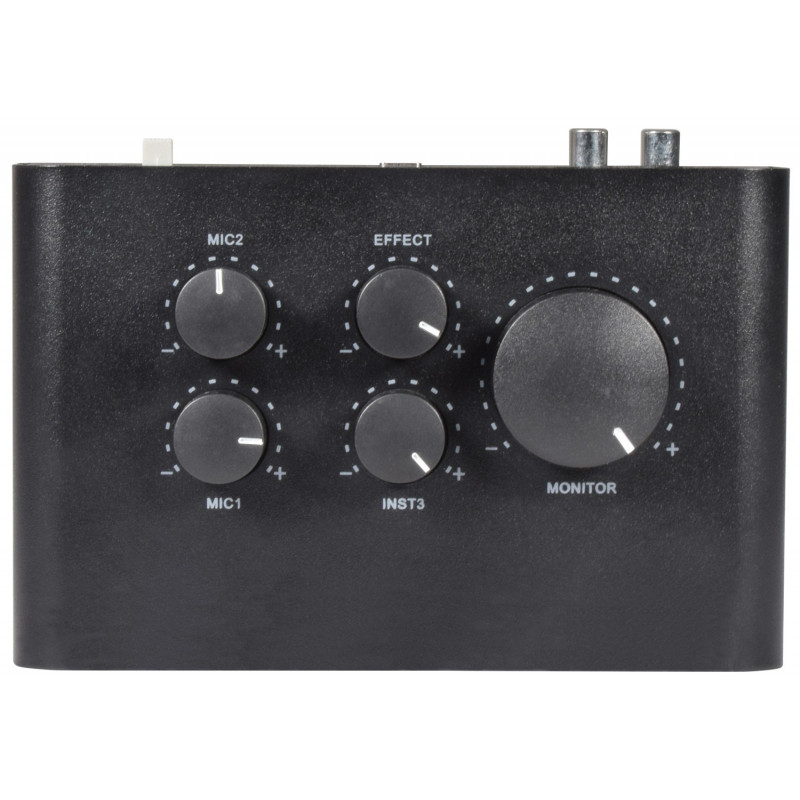

USB sound card for computer recording studio. It features 2 independent microphone inputs on XLR/Jack sockets and a separate 6.3mm instrument input. Each input has a gain control and there is an optional echo effect with separate control. Monitoring is via a 6.3mm stereo headphone jack or an RCA L+R line output on the back of the unit for connecting monitor speakers. Power to the interface and two-way digital audio is connected via a USB Type-C socket on the rear. Simple yet versatile operation for project studios and DAW recording setups.
- 2 XLR/Jack microphone inputs with gain and mute control
- 6.3 mm jack input for independent instrument
- 48 kHz sampling rate
- Built-in echo effect
- 1.5m USB Type C to A cable supplied
| Code |
173.650UK |
| Model |
USB2+1 |
| Power supply |
5 VDC (from USB) |
| Connection |
USB type C |
| Controls |
Mic1, Mic2, Inst3, Effect, Monitor |
| Input connections |
2 x mic XLR/Jack, 1 x 6.3mm instrument Jack |
| Phantom Power |
+48V switchable to XLR inputs |
| Response frequency |
10Hz - 30kHz (-0.5dB) |
| Instrument input impedance |
1M Ohm |
| Microphone input impedance |
3k Ohm |
| Max. input sound level |
Mic or Instrument +2dBu, Line +22dBu |
| Dynamic range |
100 dB (A-weighted) |
| Sampling format |
48kHz, 16-bit |
| Monitor outputs |
Headphones (6.3mm stereo jack), Line out (L+R RCA) |
| Dimensions |
160 x 110 x 57mm |
| Weight |
529g |
